AirX Record
AirX Record is a multichannel synchronized ingest and recording solution, ideal for stream recording software applications, and built for all your broadcast or production needs. With its rock-solid reliability and intuitive user interface, AirX Record is a pivotal element in our AirX ecosystem.
The system offers support for mixed signal ingest, including recording in formats such as UHD/HD/SD-SDI, CVBS + Analog/SDI Embedded Audio, MPTS/SPTS over ASI/IP, NewTek NDI, and ST 2110. For each channel, individual settings and parameters can be customized, and we provide various pre-configured recording profiles.
Key features
Client-server architecture tailored for efficient multichannel recording

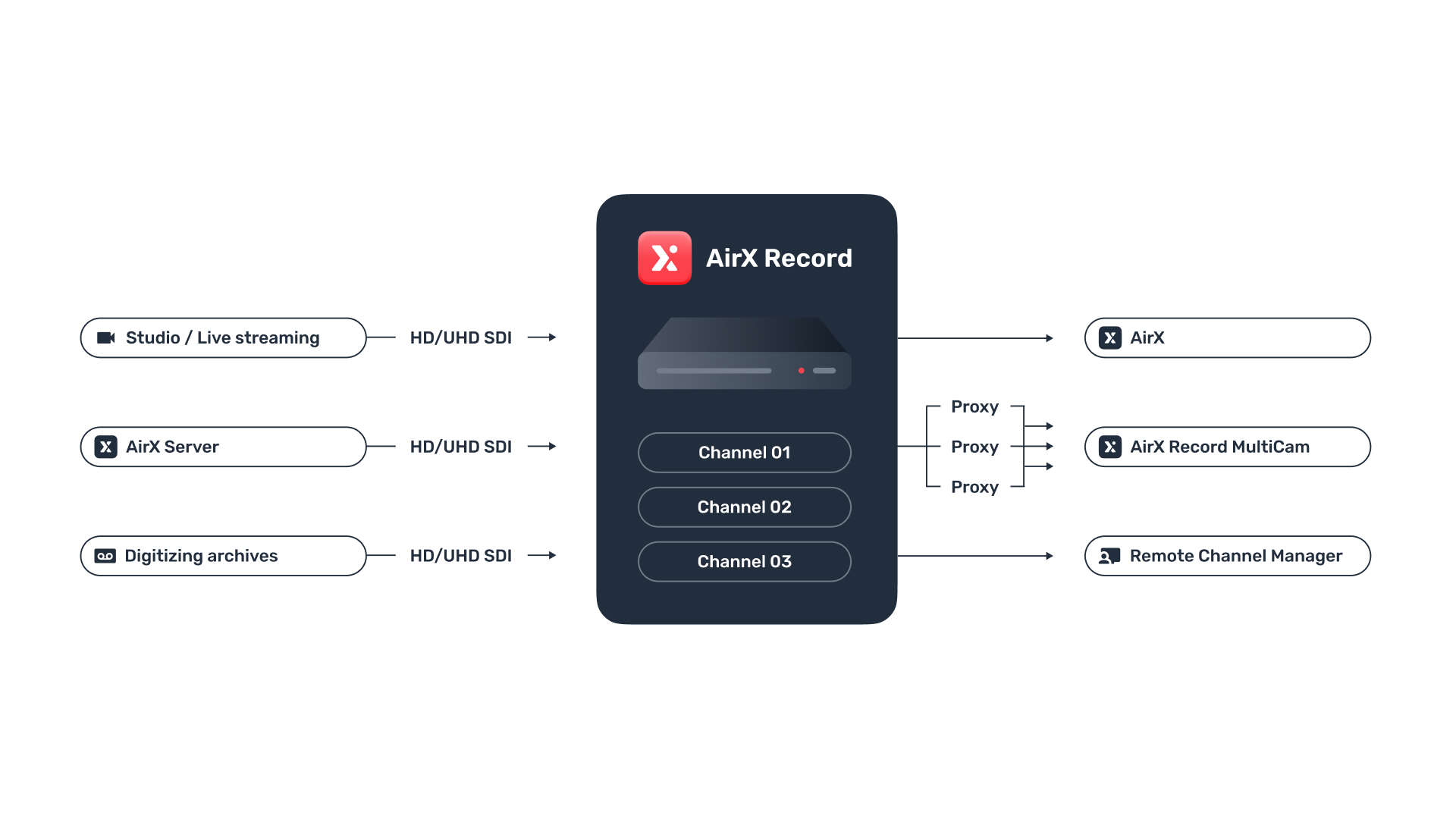

Capabilities to Record/Ingest from diverse sources like capture cards, the AirX Playout broadcast server, or from network streams
Unlimited number of recorded channels, based on hardware capabilities
Each channel can be customized with independent settings and parameters
Multi-format Record/Ingest capabilities, allowing simultaneous recording in diverse formats

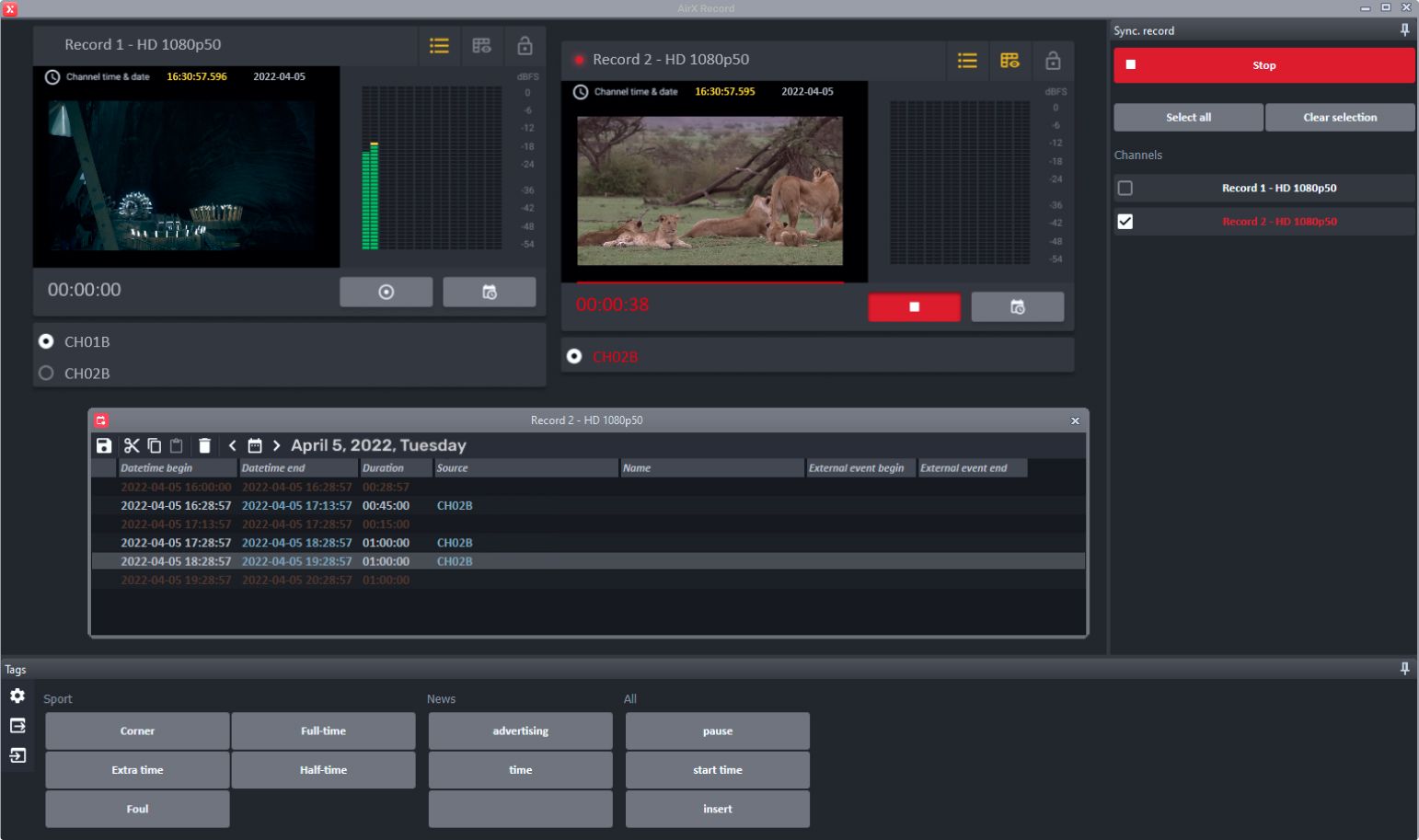

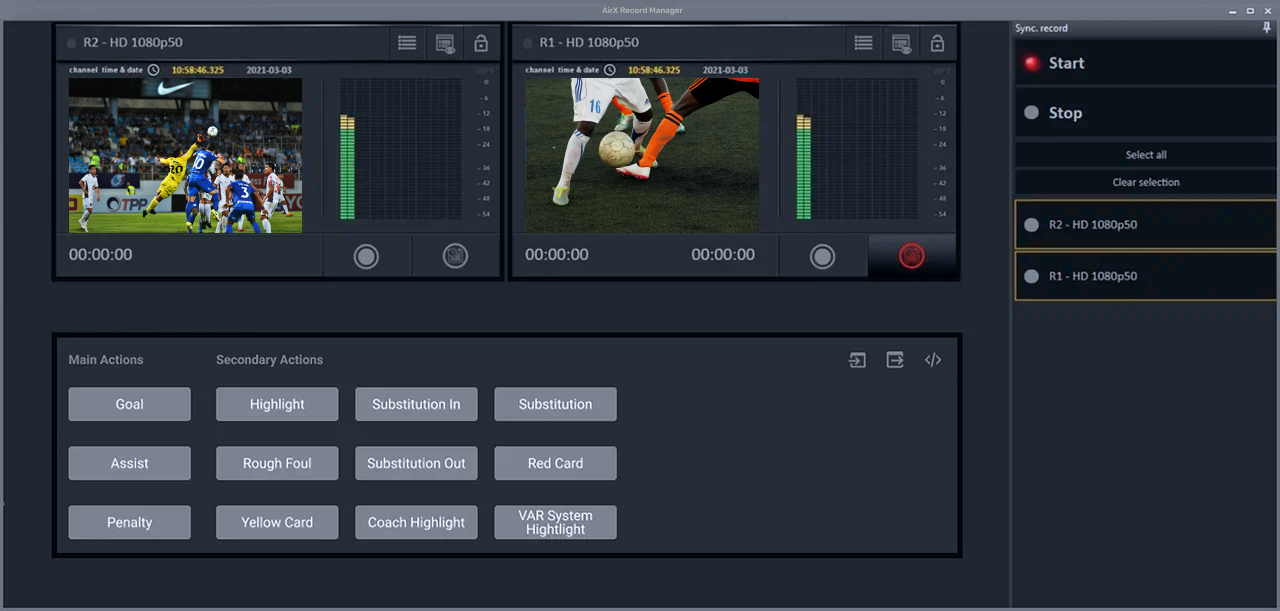

Real-time visual monitoring of any input and recording, with audio levels displayed in PPM
Advanced scheduling options for recording, including GPI, DTMF, SCTE-35/SCTE-104 markers, or manual mode, using the built-in AirX Manager editor
Schedule editing with the built-in editor, AirX Manager.
Continuous 365-day schedule feature with user-friendly navigation
Daily As-run log to track system performance and activities
TECHNICAL SPECIFICATIONS
- Blackmagic Design DeckLink
- Dektec
- AJA KONA
- AJA Corvid 88
- Mellanox* (ST-2110)
- Н.264 4:2:0
- MPEG-2 4:2:0
- MPEG-2 1-Frame 4:2:0
- DVCam
- DVCPro 4:1:1
- DVCPro50 4:2:2
- DVCPro FID 4:2:2
- IMX 30/40/50 4:2:2
- DNxHD 120/185 4:2:2
- AppleProRes HD HQ/LT/NQ/Proxy 4:2:2
- AppleProRes SD HQ/LT/NQ/Proxy 4:2:2
- XDCAMHD 17/25/35 4:2:0
- XDCAMHD 50 4:2:2
- XDCAMEX 35 4:2:0
- XAVC 4:2:2
- QuickTime
- MOV
- MP4
- MXF
- AVI
- ST–2110
- NewTek NDI®
- SDI up to 12G-SDI (Embedded audio)
- Composite/S–Video/YUV (Analog Audio: balanced / unbalanced)
- ASI / IP TS UDP (MPEG 2, AVC/H264, HEVC/H265)
- HDMI (576, 720, 1080, 2160)
- WEB RTMP, RTSP, HLS, MPEG–Dash, Haivision SRT
- MPEG Layer 2
- AAC
- ATSC A/52A (AC-3)
- PC
